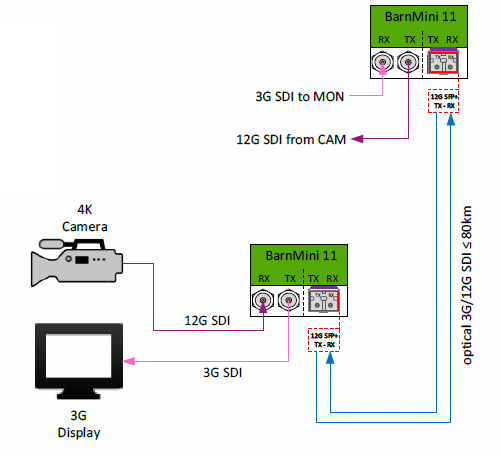

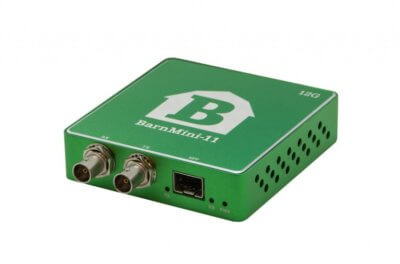

The BarnMini-11 is the big brother to the popular BarnMini-01 solution that delivers simple and reliable point-to-point digital
extension. BarnMini-11 offers support for up to 12 Gbit/s bandwidth.
Description
It can handle 12G, 10G, 6G and any other video/ data format
with a lower data rate than 12 Gbit/s. BarnMini-11 is e quipped with a re -clocker. And as any other BarnMini module it is flexible
and with comprehensive video specifications.
Technical Specifications
Electrical ports
- 1x TX BNC port
- 1x RX BNC port
- 75 OHM BNC connector
- SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082
- Multirate reclocking of outputs 270Mbit/s – 12Gbit/s
Optical ports
- Fiberoptical port (SFP) , Duplex transcievers , LC/PC connectors (optional HDMI, HD-BNC, RJ45)
- SMPTE 259M, 292M, 372M 424M, 297M, DVB-ASI, SMPTE ST-2081, ST-2083
- Multirate reclocking of outputs 270Mbit/s – 12Gbit/s
- Hot pluggable/swappable
- Singlemode and/or Multimode
- 16 CWDM wavelength selections – ITU-T G.694.2
Power supply
- 12-24V DC. Power supply included
Physical size
- 92mm x 98mm x 22mm
- 200g
Model name
- BM-11
Additional information
| FIBER MODE | Single Mode |
|---|---|
| FIBER TYPE | 12G, 3G, Eithernet, Tally, Throw-Down Brick |
| LIGHT WATT POWER | 1-100w |
