GL-BarnMini-22-12G/bf1

Description

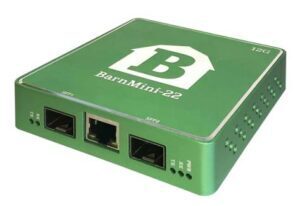

BarnMini-22 supports data rates up to 12Gbit/s. It can handle 12G
and 6G SDI, 10G Ethernet and any other digital signal with a data rate lower than 12Gbit/s. It is equipped with a re-clocker which
can be manually controlled via the control port. Inserted SFPs can be monitored and controlled with BarnStudio like any Barnone
unit. As any BarnMini module it is available as a standalone unit with a separate PSU or mounted into the BarnMini BTF-Mini-16
frame that houses any combination of 16 x BarnMini modules with a common PSU.

SFP+ ports Physical Size
92mm x 98mm x 22mm
· 200g
· Model Name

BM-22
· Hot pluggable/swappable
Control Port
· 1x Port RJ45 connector
· 10/100 Mbit/s Ethernet
Power Supply
· 12-24V DC power supply included
· redundant power supply available with BTF-Mini-16
Suitable for optical transceivers (single mode/multi mode),
SFP/SFP+ media converters (HDMI, Ethernet, SDI, CVBS etc.)
SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082,
DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae (10GE),
proprietary protocols
2x Port for Enhanced Small Form-Factor Pluggable (SFP+),
supports MSA-compliant and non-MSA transceivers

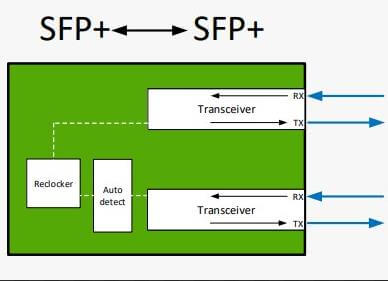

Transceiver
RX
TX
Auto
detect
R
