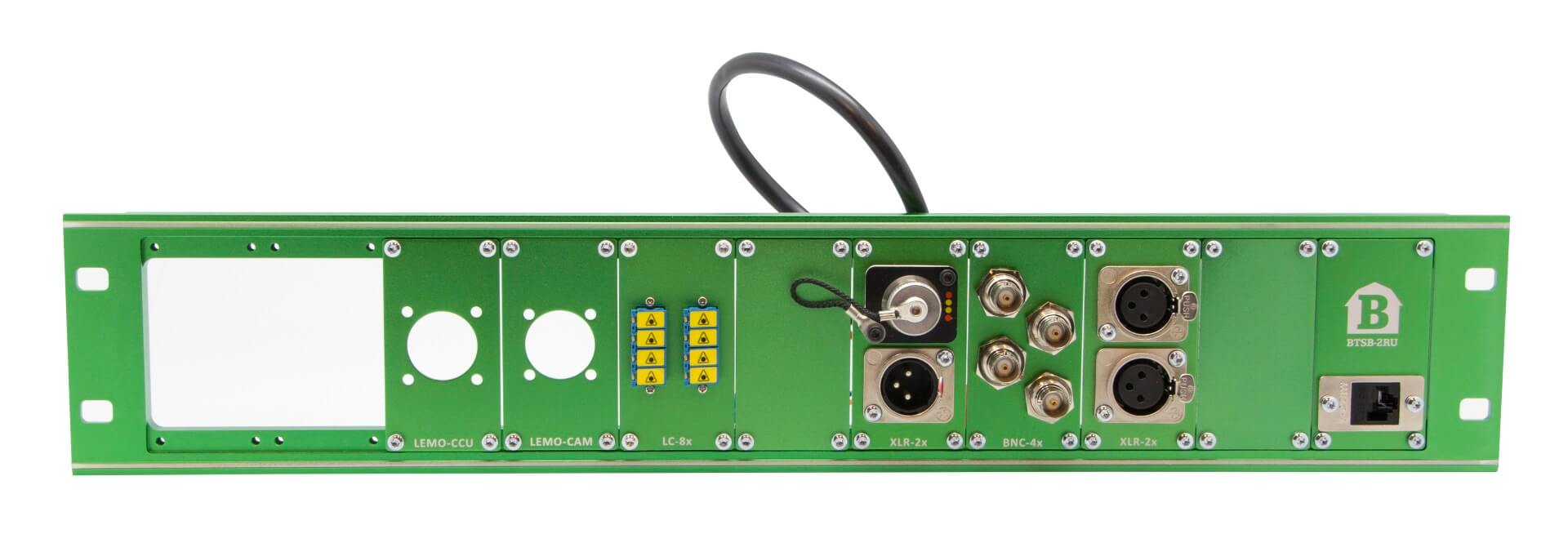

The Barnfind Stagebox Break-out panel allows you to customize your own front panel based on the required connectors. The various selection of modules will be the connection points to one or more frames.
Description
All modules are made of solid alluminium, with high performance connectors.
Note!
- The BTSB-BASE blind cover can be customized to fit any other connector outside the Barnfind selection.
- The cables between Break-out panel and frames are not included.

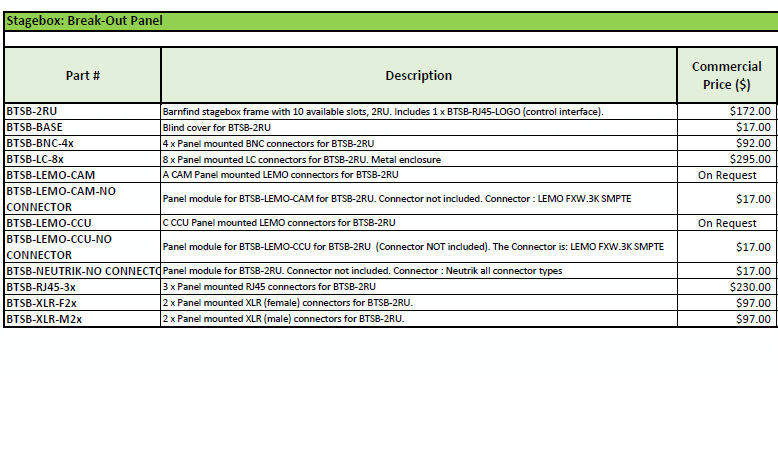

Stagebox component overview
Blind cover to fill up unused slots in BTSB-2RU. Note, can also be used to customize for a special preferred connector.

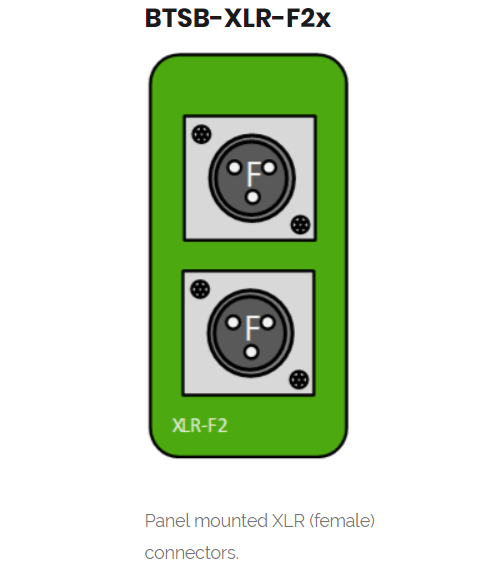

BTSB-XLR-F2x
Panel mounted XLR (female) connectors.

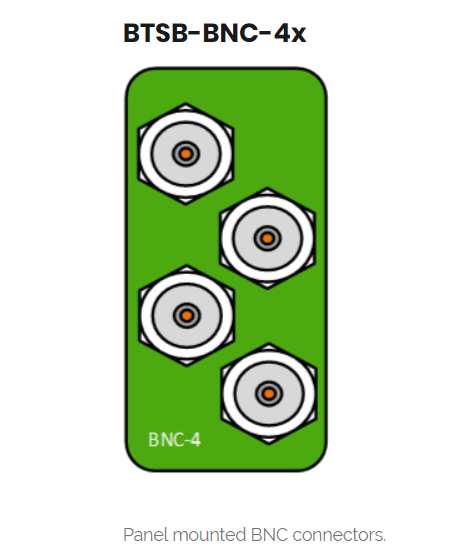

BTSB-BNC-4x
Panel mounted BNC connectors.

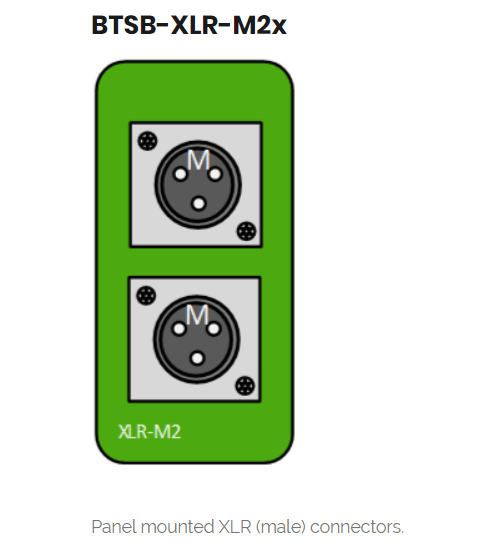

BTSB-XLR-M2x
Panel mounted XLR (male) connectors.

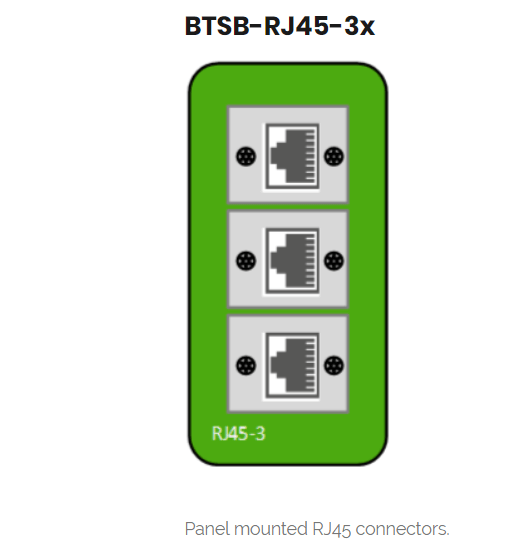

BTSB-RJ45-3x
Panel mounted RJ45 connectors.

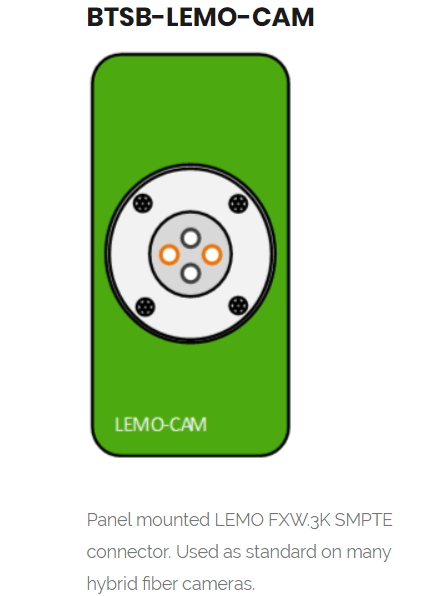

BTSB-LEMO-CAM
Panel mounted LEMO FXW.3K SMPTE connector. Used as standard on many hybrid fiber cameras.

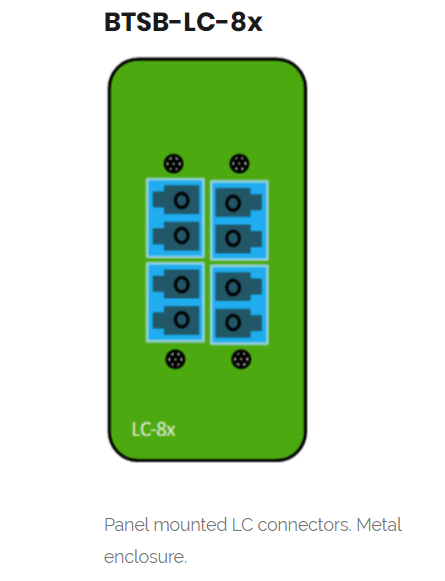

BTSB-LC-8x
Panel mounted LC connectors. Metal enclosure.

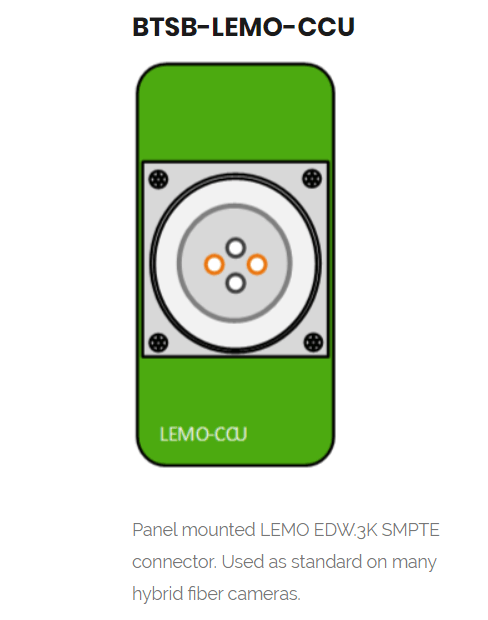

BTSB-LEMO-CCU
Panel mounted LEMO EDW.3K SMPTE connector. Used as standard on many hybrid fiber cameras.
BTSB-2RU
Additional information
| FIBER MODE | CWDM, Single Mode |
|---|---|
| FIBER TYPE | 3G, 3rd Party Control, 4k60p Workflows, Built-in Router, CAM-CCU, Eithernet, GPI/O, HDMI, Intercom, KVM, MADI, Rack Style, RCP, SDI to IP, SDTI(EVS), Serial, SMPTE 2022-6, Tally, Throw-Down Brick, Web Interface |
| LIGHT WATT POWER | 1-100w |
